AWS Kinesis

Amazon Web Services Kinesis

AWS Kinesis data connector configuration object consists of the following attributes:

Attribute	Description
type	Connector type; must be always set to aws-kinesis.
id	App wide unique connector id.
credentials	Username and password to connect to the service.
region	Region name of the AWS Kinesis Service. See below for valid regions.
stream	Stream name.
shards	Number of shards specified when creating the stream.
maxRecordsPerShardPerSecond	Max records per shard per second.
maxBytesPerShardPerSecond	Max bytes per shard per second.
dataProcessingMethodId	Optional. Id of the App method that will be used for filtering and/or transforming incoming data. See Overview page for details.
disabled	Optional. When true data connector stops streaming.

Valid Regions#

GovCloud("us-gov-west-1", "AWS GovCloud (US)"),
US_GOV_EAST_1("us-gov-east-1", "AWS GovCloud (US-East)"),
US_EAST_1("us-east-1", "US East (N. Virginia)"),
US_EAST_2("us-east-2", "US East (Ohio)"),
US_WEST_1("us-west-1", "US West (N. California)"),
US_WEST_2("us-west-2", "US West (Oregon)"),
EU_WEST_1("eu-west-1", "EU (Ireland)"),
EU_WEST_2("eu-west-2", "EU (London)"),
EU_WEST_3("eu-west-3", "EU (Paris)"),
EU_CENTRAL_1("eu-central-1", "EU (Frankfurt)"),
EU_NORTH_1("eu-north-1", "EU (Stockholm)"),
AP_SOUTH_1("ap-south-1", "Asia Pacific (Mumbai)"),
AP_SOUTHEAST_1("ap-southeast-1", "Asia Pacific (Singapore)"),
AP_SOUTHEAST_2("ap-southeast-2", "Asia Pacific (Sydney)"),
AP_NORTHEAST_1("ap-northeast-1", "Asia Pacific (Tokyo)"),
AP_NORTHEAST_2("ap-northeast-2", "Asia Pacific (Seoul)"),
SA_EAST_1("sa-east-1", "South America (Sao Paulo)"),
CN_NORTH_1("cn-north-1", "China (Beijing)"),
CN_NORTHWEST_1("cn-northwest-1", "China (Ningxia)"),
CA_CENTRAL_1("ca-central-1", "Canada (Central)");

Create:

POST .../v3/apps/:ref/dataconnectors

{
  "type": "aws-kinesis",
  "id": "dc.kinesis.1",
  "credentials": {
    "user": "AKIAJH44BQER4BMM6Q",
    "password": "mypassword"
   },
   "region": "us-west-2",
   "stream": "test",
   "shards": 1,
   "maxRecordsPerShardPerSecond": 1000,
   "maxBytesPerShardPerSecond": 1000000,
   "disabled": false
 }

Update

PUT .../v3/apps/:ref/dataconnectors/dc.kinesis.1

{
   "shards": 2,
   "maxRecordsPerShardPerSecond": 1000,
   "maxBytesPerShardPerSecond": 1000000
 }

AWS Kinesis Service Setup#

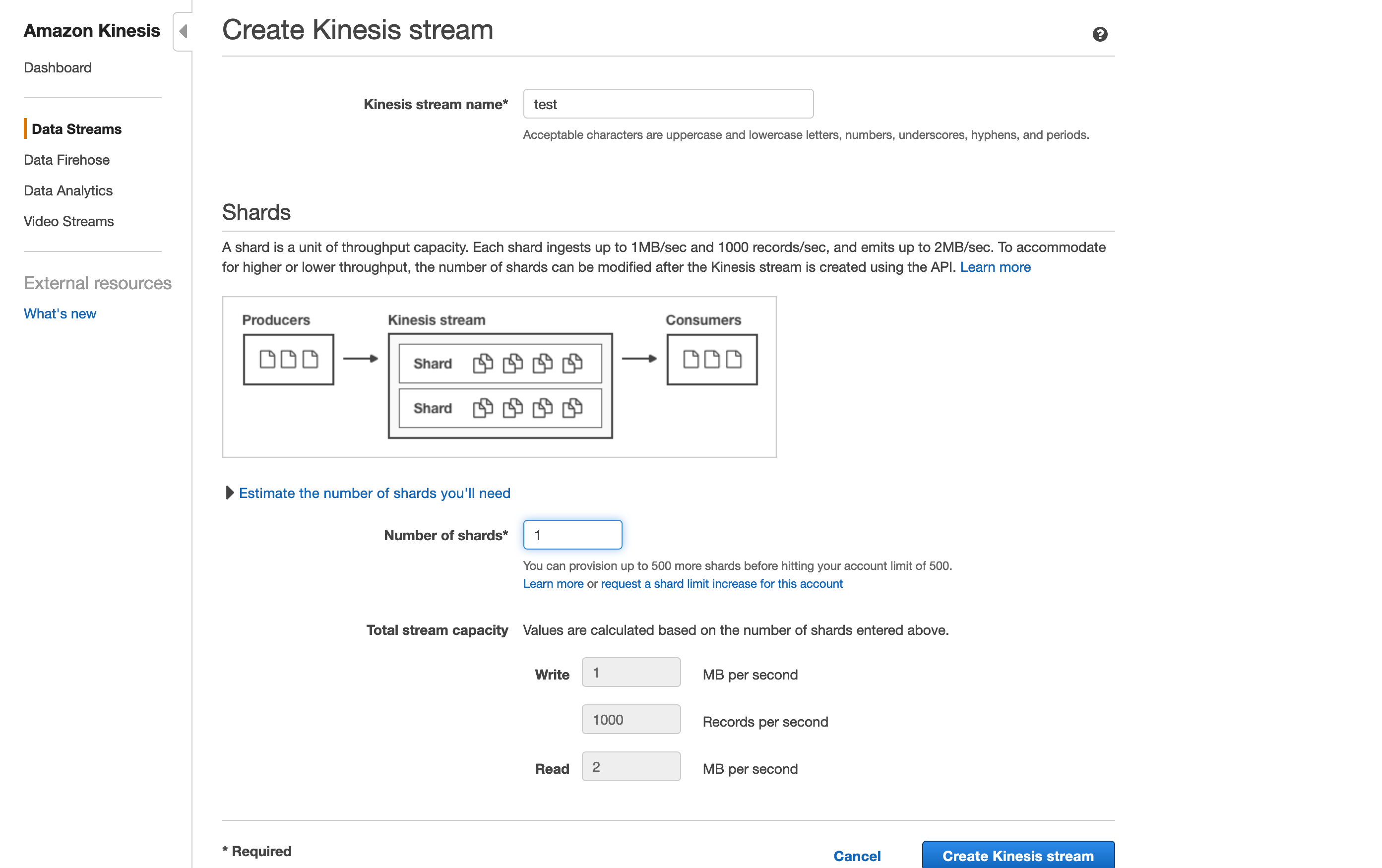

Kinesis Stream settings on AWS Management Console.

Example kinesis
